Drake Relay Station Southern Oregon GMRS
Equipment
3 Retevis RT-97S 467.600tx CTCSS127.3, 467.625tx DPL 606N, 467.575tx DPL 606N then 462.600rx CTCSS127.3, 462.625rx DPL 606N, 462.575rx DPL 606N

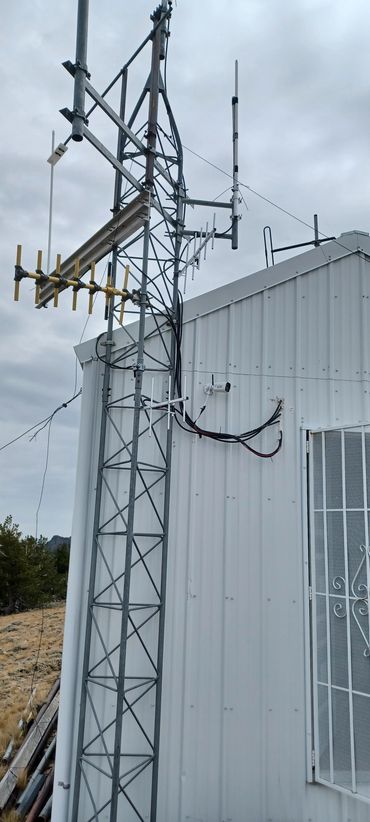

All with built in 10 watt duplexers. 6 watts out to Yagi Directional Antennas with 11.0 db gain. 25 feet of LMR-400 coax.
Location

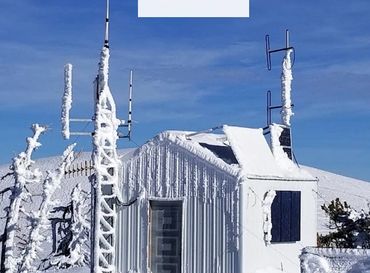

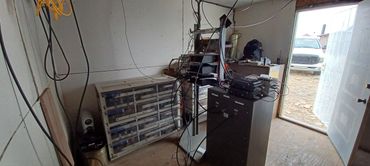

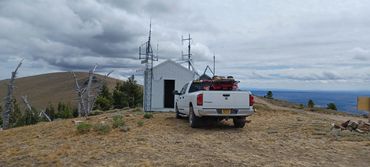

Relay Station is housed in the KE7QP building on Drake Peak at 8,200 ft
Control

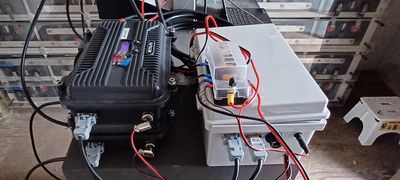

Internet is supplied by Visible Hotspot Internet. Relay Station is controlled by a Raspberry PI 3B Plus and 3 Kevin Cluster USB hardware interface, WIFI relay devices with APP display. Along with a Weather Camera
SkywarnPLUS Weather
System will broadcast warnings with any Weather, Fire, Earthquake situations happening in the Klamath and Lake counties.
Capturing Moments: Our Photo Gallery
