Lakeview Repeater LV625 Southern Oregon GMRS
Equipment

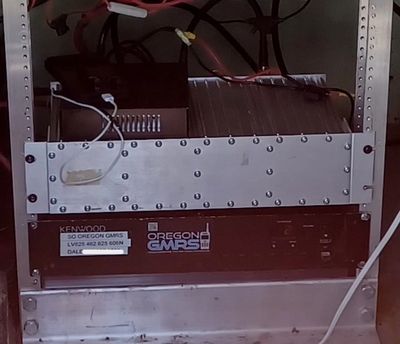

Kenwood TKR-850 45 watt tuned to 462.625tx 467.625rx with a DPL 606N output power is set to 35 watts for 100% continuous duty. Sinclair 4 cavity Bp/Br duplexer 30 watts out. Coax is LMR-400 35 feet. Tram 1486 antenna with 6.7db gain with a ERP of 120 watts.
Location
Repeater is housed in the KE7QP building on Grizzly Peak at 7,760 ft
Control
Internet is supplied by Visible Hotspot. Repeater is controlled by a Raspberry PI 3B Plus and Kevin Cluster USB hardware interface, WIFI relay devices, Temperature control fan with APP display.
SkywarnPLUS Weather
System will broadcast warnings with any Weather, Fire, Earthquake situations happening in the Klamath and Lake counties.
